Hydraulic Hose Sleeve | Abrasion, Heat & UV Protection

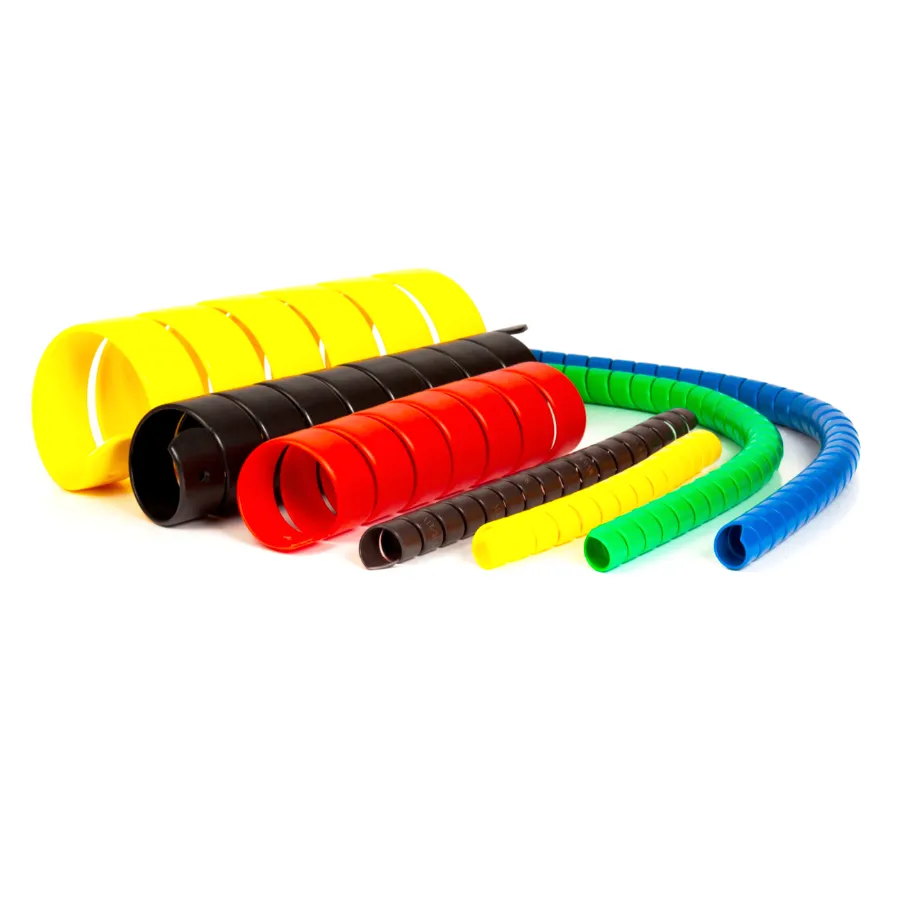

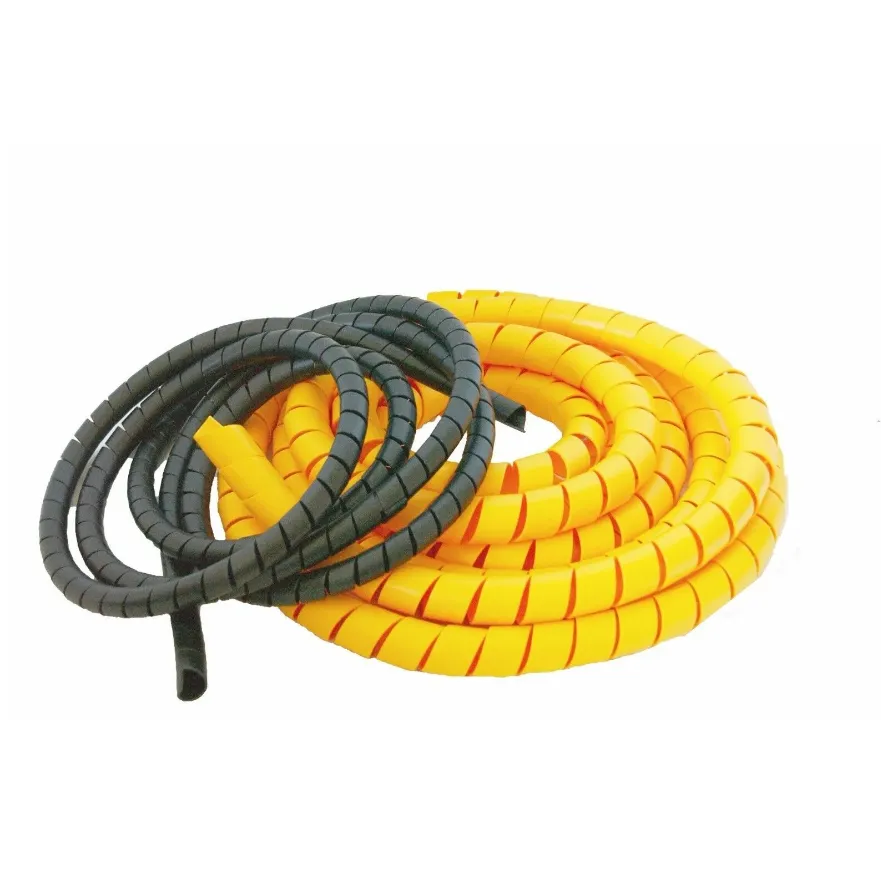

PP Spiral Guard: the underrated Hydraulic Hose Sleeve that prevents expensive downtime

I’ve walked plenty of shop floors where hose bundles rub, chafe, and—eventually—fail. The fix is rarely flashy, but it works: a PP Spiral Guard. It’s the practical Hydraulic Hose Sleeve you toss on and forget, until you realize you haven’t replaced a hose in months. Made in Daowang Town, Guangrao County, Dongying City, Shandong Province 257335, this style of sleeve is light, tough, and honestly pretty forgiving during installs.

What’s driving adoption right now

Across construction, mining, ag, and even wind O&M, the trend is clear: teams want longer service intervals and fewer safety incidents. Sleeve demand is rising for three reasons—abrasion protection, easier routing of hose bundles, and quick color-coding for maintenance. PP spiral (polypropylene) has edged past HDPE in a lot of fleets thanks to nicer flexibility and better impact behavior at moderate cold. To be honest, many customers say the biggest win is simply fewer “rub-through” surprises.

Product snapshot

Parameter	Typical value (≈, real-world use may vary)
Material	Polypropylene (UV-stabilized), optional anti-static or FR blend
Operating temp	≈ −30°C to +100°C (short peaks to +110°C)
Size coverage	Hose OD ≈ 10–120 mm
Spiral thickness / pitch	≈ 1.8–3.2 mm / ≈ 11–25 mm
Colors	Black, Yellow, Red, Blue; custom on request
Abrasion (ISO 6945)	Low mass loss; field reports show 2–4× hose-cover life
Compliance	RoHS, REACH; factory ISO 9001

How it’s made (and tested)

Materials: virgin PP pellets with UV package; color masterbatch for visibility or coding.
Method: precision extrusion and spiral forming; edges are deburred to avoid cutting the hose cover.
Stabilization: controlled cooling and light anneal to reduce set and improve snap-back.
Testing: abrasion per ISO 6945; UV exposure per ASTM G154; dimensional checks; impact and bend at low temp.
Service life: around 5–8 years in mixed outdoor duty; mining or high UV may shorten that (honestly, it depends).
Traceability: batch codes on bags and cartons; COA available.

Where it shines

Use Hydraulic Hose Sleeve on excavators, skid steers, forestry harvesters, underground trucks, marine deck lines, agricultural sprayers, presses, and injection molding cells. It keeps bundles neat, shields against rock scrape and cable trays, and reduces snag risks. Surprisingly, color-coded sleeves help new techs route circuits correctly—small detail, big effect. Anecdotally, one Midwest contractor told me they cut hose replacements by ~30% in a season after sleeving all articulated joints.

Vendor snapshot (indicative)

Vendor	Lead time	MOQ	Certs	Customization
JYhose (PP Spiral Guard)	≈ 10–15 days	As low as 200–500 m	ISO 9001, RoHS/REACH	Sizes, colors, print, cut-to-length
Generic Importer A	≈ 4–6 weeks	1000 m	RoHS (self-declared)	Limited colors
Regional Distributor B	Stock on common sizes	Per box	—	Cut-to-length only

Customization and real-world notes

You can spec tight or loose pitch for flexibility vs. coverage, add printed circuit IDs, or go high-visibility yellow on mobile plant. Flame-retardant and anti-static versions exist (check local regs). Install tip: follow SAE J1273 routing; don’t let metal clamps bite through the sleeve—use cushion clamps.

Mini case studies

Quarry wheel loader: sleeved boom hoses; abrasion incidents dropped to zero over 9 months.
Forklift fleet: color-coded sleeves by function; faster troubleshooting and fewer cross-connection errors.
Marine deck winch: UV-stable sleeve; no chalking after 500 h accelerated UV per ASTM G154.

Factory: Daowang Town, Guangrao County, Dongying City, Shandong Province 257335. Certifications available on request.
