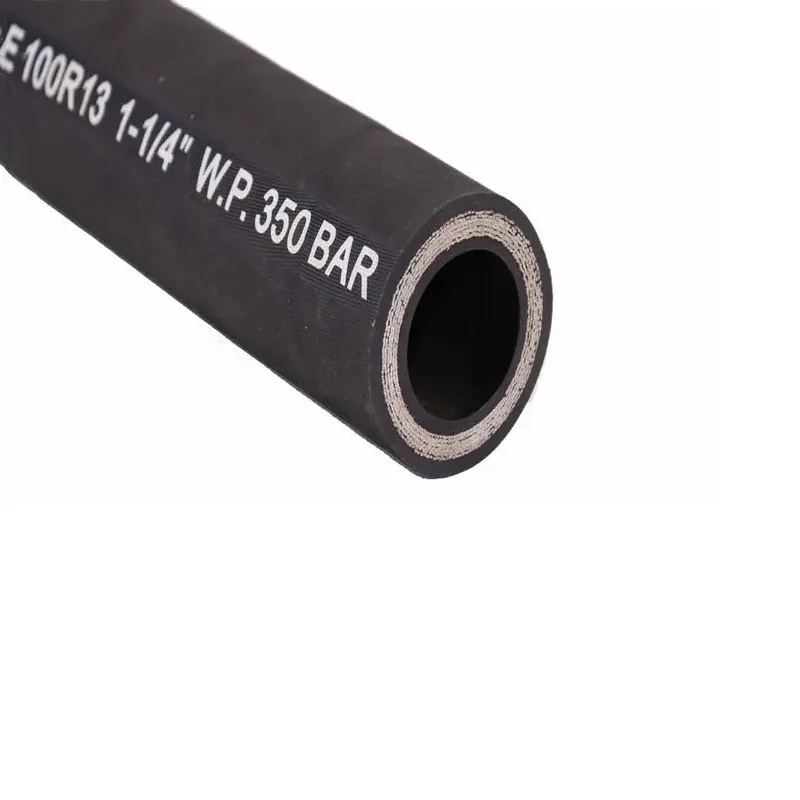

Heavy Duty Multi-layer Steel Wire Reinforced Hydraulic Hose SAE100R13 SAE100R15

Inner Tube : oil resistant synthetic rubber - delivering hydraulic oils for long-term use.

Reinforcement Layer: four layers or six layers of high-tensile steel wire spiral reinforced - its used to withstand high pressure.

Cover : oil resistant and weather resistant synthetic rubber - it can work at tough condition and complex environment.

Temperature : -40℃ (-104℉) to +121℃ (+250℉)

CONTACT NOW PDF DOWNLOAD

Product introduction

Description

Data Table

Application Fields

Product features

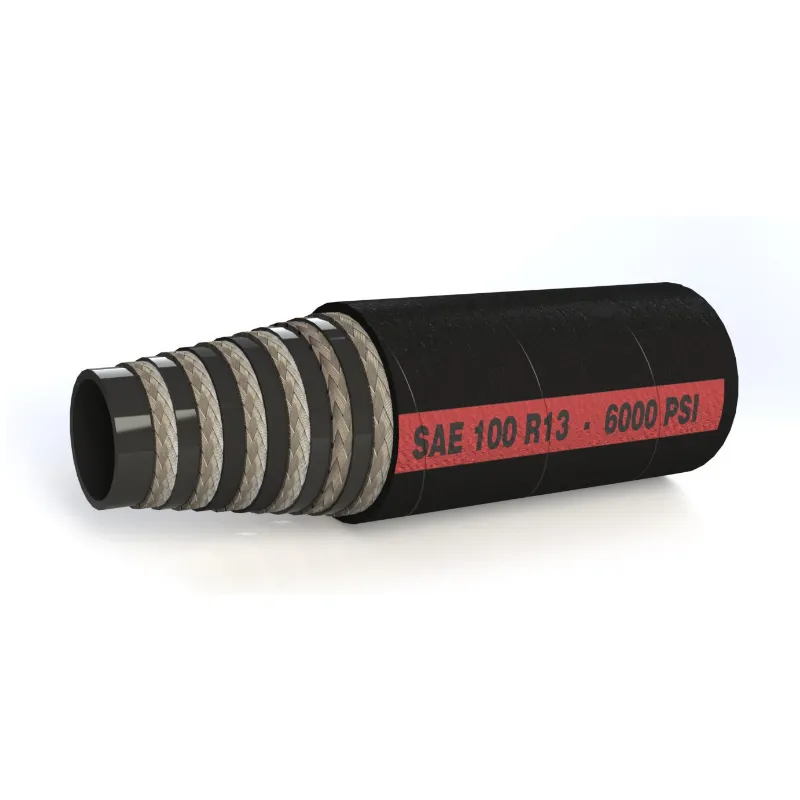

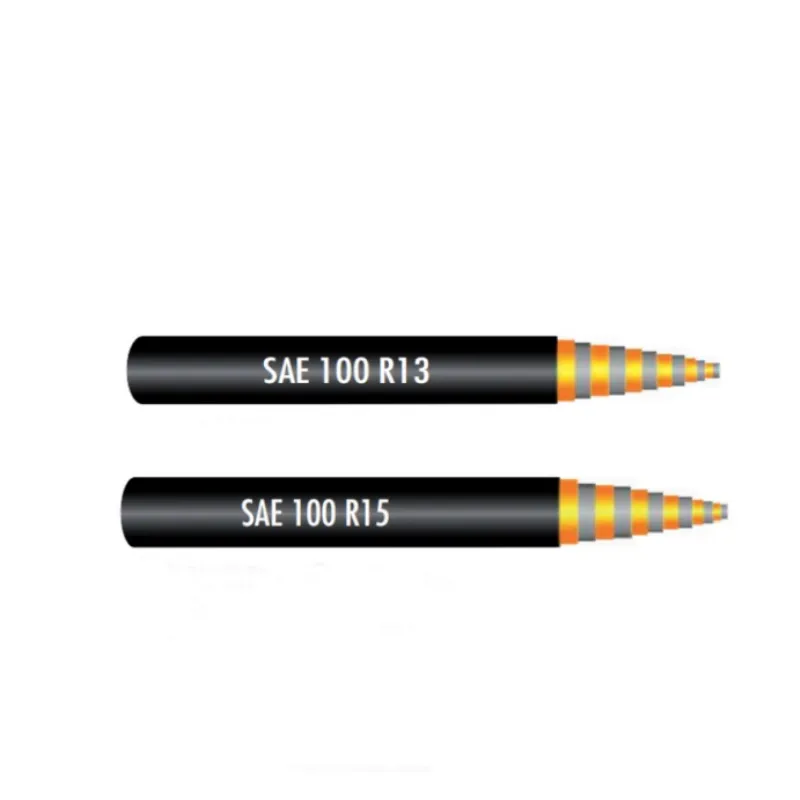

Hydraulic hose SAE 100 R13/R15 multi-layer steel wire spiraled hydraulic hose consists of three layers. Inner tube, reinforcement and outer layer. Its used to deliver hydraulic fluid, petroleum based hydraulic fluid, hydraulic oil, mineral oil, gasoline, fuel oil, lubricating oil, emulsion, glycol solution, air brake, gas and water. Its mainly used in extremely high pressure and tough working conditions. Hydraulic hose SAE 100 R13 inside diameter size range is from 19mm to 51mm that is a wide size range relative to extremely high pressure. Hydraulic hose SAE 100 R15 inside diameter size is from 10mm to 38mm with heavy duty workplace.

Hydraulic hose is made of rubber and plastic material, also known as rubber and plastic hose which has obvious efficiency and energy saving effect.

High pressure hose steel wire reinforced hydraulic rubber hose can be used in mine hydraulic support, oil field development, suitable for engineering construction, lifting and transportation, etc.

The hydraulic hose has three layers of different material structure. The inner tube is made from oil resistant synthetic rubber, therefore it can’t be corroded by the petroleum base fluid and liquid. The reinforcement part is consist with four layers of high tensile and high strength spiraled steel wire, and wind in alternating directions, therefore the hose can withstand internal and external extremely high pressure. The cover is made from high quality rubber and to play the protective function, so the rubber hose could resistant to abrasion, corrosion, air oxidation, extreme weather, ozone, aging, sunlight and cutting, also with longer service life.

SAE 100 R13

Metric Size	Inch Size	Dash Size	I.D		W.D		O.D		Max W.P		Min B.P	Min B.R	W.T
Metric Size	Inch Size	Dash Size	(mm)		(mm)		(mm)		Max W.P		Min B.P	Min B.R	W.T
mm	Inches	Dash	Min	Max	Min	Max	Min	Max	Mpa	psi	Mpa	mm	Kg/m
19	3/4	12	18.6	19.8	28.2	29.8	31	33.2	35	5075	140	240	1.53
25	1	16	25	26.4	34.1	36	37.6	39.8	35	5075	140	300	2.09
32	1/1/4	20	31.4	33	45.6	48	48.3	51.3	35	5075	140	420	3.76
38	1/1/2	24	37.7	39.3	53.1	55.5	55.8	58.8	35	5075	140	500	4.58
51	2	32	50.4	52	66.9	69.3	69.5	72.7	35	5075	140	640	6.69

SAE 100 R15

Metric Size	Inch Size	Dash Size	1.D		W.D	O.D	Max W.P		Min B.P	Min B.R	W.T
Metric Size	Inch Size	Dash Size	Standard(mm)		Standard(mm)	Standard(mm)	Max W.P		Min B.P	Min B.R	W.T
mm	inches	Dash	Min	Max	Max	Max	Mpa	psi	Mpa	mm	Kg/m
10	3/8	6	9.3	10.1	20.3	23.3	42	6090	168	150	0.91
12.5	1/2	8	12.3	13.5	24	26.8	42	6090	168	200	1.21
19	3/4	12	18.6	19.8	32.9	36.1	42	6090	168	265	2.25
25	1	16	25	26.4	38.9	42.9	42	6090	168	330	3.12
31.5	1-1/4	20	31.4	33	48.4	51.5	42	6090	168	445	3.87
38	1-1/2	24	37.7	39.3	56.3	59.6	42	6090	168	530	5.29
