Textile Braid Reinforced Hydraulic Hose SAE100 R3+R6

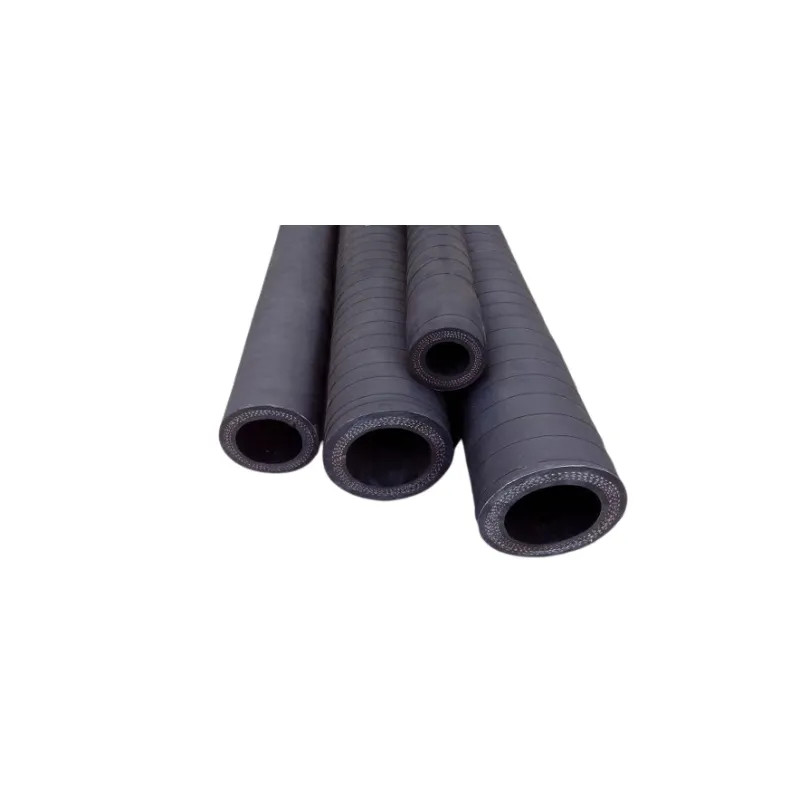

SAE 100 R3 is 2 layers of fiber braid hydraulic hose. It consists of three layers. Inner tube, reinforcement and cover. The rubber hose is flexible and in light weight. Its used to deliver petroleum or water-based hydraulic fluids with medium pressure, such as hydraulic oil, mineral oil, gasoline, fuel oil, gas and water. It is also can be used in pneumatic applications. There are two types of surface, wrapped surface and smooth surface.

SAE 100 R6 is single layer of fiber or textile braid hydraulic hose, which is low pressure hydraulic hose.

This is low pressure rubber hose textile reinforced hydraulic rubber hose mainly used in mine hydraulic support, oil field development, suitable for engineering construction, lifting and transportation, etc.

What Makes Our Textile Reinforced sae 100 r6 Hose Reliable?

The performance and stability of a hydraulic hose are influenced by its internal construction, reinforcement structure, and suitability for the working environment. Our textile braid reinforced hydraulic hose is engineered to meet the operational reliability expected from sae 100 r6 grade hoses in low to medium pressure hydraulic systems. The inner tube is formulated using oil-resistant synthetic rubber, designed to maintain elasticity and barrier stability when exposed to hydraulic fluids and lubrication oils. This prevents premature internal hardening or chemical breakdown, ensuring smooth and continuous fluid transfer without flow obstruction.

The reinforcement system is based on a high-strength textile braided layer. The yarn material, weaving density, and bonding process determine how the hose responds to bending, vibration, and directional pressure. Because of this controlled braiding structure, the hose can be routed through confined machinery spaces without kinking or collapsing. This flexibility is especially valuable for mobile equipment, compact agricultural machines, and workshop hydraulic return systems where space is limited.

The outer rubber layer is designed to resist abrasion, surface wear, and environmental exposure. Machines operating in industrial sites, garages, or outdoor service conditions frequently encounter dust, debris, metal edges, and fluctuating temperatures. The protective cover shields the reinforcement layer from damage and helps maintain the structural integrity of the sae 100 r6 hose during extended use. This reduces maintenance frequency and provides a longer service lifespan in practical operation scenarios.

Ease of installation is another advantage. The textile reinforcement reduces hose weight, making routing and replacement straightforward for technicians. This decreases equipment downtime and maintenance labor cost. From a cost management standpoint, our company controls the sourcing of raw materials and maintains direct production processes. Because we operate without intermediaries, procurement costs are reduced, and product consistency across supply batches is ensured.

In applications where oil return, lubrication circulation, or low-pressure hydraulic transfer is required, the hose performs with predictable responsiveness. Operators gain stable machine function, and maintenance teams gain reliability without unexpected failures. This balance of performance, durability, and service efficiency has made sae 100 r6 fuel hose solutions a practical and trusted choice for industries seeking dependable equipment support.

How Does a sae 100 r6 fuel hose Perform in Real Equipment Use?

The practical performance of a hydraulic hose becomes clear when applied to real-world equipment conditions. As a sae 100r6 hydraulic hose, this hose is designed to handle light petroleum-based fluids, such as diesel and gasoline blends found in mechanical systems and small vehicles. The inner rubber compound is carefully formulated to resist softening, swelling, or chemical breakdown during sustained exposure to these fuels. This ensures that the internal walls remain intact, providing consistent flow capacity and preserving hydraulic efficiency throughout extended operation periods.

The textile braid reinforcement provides a critical balance between strength and flexibility. When the hose is routed around engine compartments or between frame components, it maintains structural shape without collapsing. This predictable bending behavior supports engines, generators, agricultural sprayers, and compact industrial machines where components are placed close together. Vibration resistance is also important. Machines in daily use generate constant movement; the braided structure helps the hose accommodate vibration without developing fatigue cracks.

The protective outer rubber layer guards against environmental wear. In workshops, fields, or mechanical repair environments, hoses contact tool surfaces, metal brackets, or dust. The abrasion-resistant exterior helps prevent surface degradation and protects the reinforcement layer, extending operational life. Temperature stability further supports reliability, ensuring function remains consistent across seasonal and climatic shifts.

Installation convenience is another advantage. The lightweight composition of sae 100 r6 hose construction makes routing, replacing, and adjusting the hose faster and easier for technicians. Reduced installation effort translates into lower maintenance downtime and improved machine availability. Combined with our factory-direct production system, customers receive dependable supply without excessive cost and with reliable product consistency.

This product is selected widely in agricultural machinery, small hydraulic platforms, lubrication maintenance equipment, and mobile service devices. In all these environments, operational stability and predictable performance are essential. With durable structure and fuel-resistant core material, sae 100 r6 systems contribute to efficient, controlled, and safe mechanical operation.

Why Do Operators Choose Our Flexible sae 100 r6 hose for Low-Pressure Systems?

Operators selecting hoses for lubrication circuits, oil return lines, and low-pressure hydraulic functions look for reliability, flexibility, and lifecycle cost efficiency. The sae 100 r6 hose meets these expectations through its construction and performance stability. The inner tube is engineered to maintain internal smoothness, resisting oil-related aging and preventing constriction that could disrupt fluid flow. This supports stable lubrication and hydraulic responsiveness, which is especially important for equipment requiring steady movement coordination.

The textile braiding reinforcement ensures that the hose maintains structural integrity during bending and mechanical vibration. Many machines operate under repetitive motion conditions, such as pivoting arms, rotating heads, and mobile chassis. The hose must flex continuously without collapsing. The reinforcement system distributes internal pressure evenly, maintaining a stable internal diameter and preventing fatigue failure. This supports machine reliability and reduces unplanned shutdown events.

The exterior protective layer provides resistance to abrasion, workplace contact, and environmental wear. Whether equipment is used in factory workshops, field operations, or repair facilities, the hose maintains durability and function. This outer protection helps preserve the reinforcement and extends overall product service life, reducing the frequency of replacements and minimizing operational disruption.

Because we directly manage raw material procurement and manufacturing, we control cost and ensure consistent product quality. This direct-supply model supports predictable availability, reliable delivery schedules, and stable pricing—factors that matter to distributors, maintenance operations, and equipment manufacturers.

In systems requiring fluid circulation under controlled pressure, a sae 100 r6 fuel hose provides dependable flow without compromising flexibility. Whether in small hydraulic machinery, lubrication maintenance systems, or industrial mechanical support environments, the hose offers a practical solution that balances durability and usability. With structured design, abrasion protection, and stable performance characteristics, sae 100 r6 remains a reliable and proven hose specification for a wide variety of operational needs.

The hydraulic hose has three layers of different material structure. The inner tube is made from oil resistant synthetic rubber, therefore it can’t be corroded by the petroleum base fluid and liquid.

The reinforcement structure has single layer or multi-layer of steel wire braid、fiber braid and high tensile textile braid, cloth reinforced respectively. The pressure of the rubber hose depends on the material of the reinforcement, therefore the hose can withstand internal and external high pressure.

The cover is made from high quality rubber and to play the protective function, so the rubber hose could resistant to abrasion, corrosion, air oxidation, extreme weather, ozone, aging, sunlight and cutting, also with longer service life.

The surface is available in smooth surface or cloth surface, depending on the type of the rubber hoses.

SAE 100 R3

Metric Size	Inch Size	Dash Size	I.D		O.D		W.P		B.P	R	kg
			(mm)		(mm)
mm	Inches	Dash	Min	Max	Min	Max	Mpa	Psi	Mpa	mm	Kg/m
5	3/16	3	4.5	5.4	11.9	13.5	10.5	1523	42	75	0.16
6.3	1/4	4	6.1	7	13.5	15.1	8.7	1262	34.8	75	0.19
8	5/16	5	7.6	8.5	16.7	18.3	8.4	1218	33.6	100	0.25
10	3/8	6	9.2	10.1	18.3	19.8	7.8	1131	31.2	100	0.29
12.5	1/2	8	12.4	13.5	23	24.6	7	1015	28	125	0.41
16	5/8	10	15.6	16.7	26.2	27.8	6.1	885	24.4	140	0.49
19	3/4	12	18.7	19.8	31	32.5	5.2	754	20.8	150	0.66
25	1	16	25.1	26.2	36.9	39.3	3.9	566	15.6	205	0.81
31.8	1-1/4	20	31.4	32.9	42.9	46	2.6	377	10.4	250	0.97

SAE 100 r6

Mine hydraulic support：excavator

Oil field mining：drilling equipment、drilling rig、oil pump

Engineering construction：lift machine、scraper、loader、drill、pile driver

Road construction machinery：rock crusher、stone crusher

Ships：cruise ship、fishing boat、yachts、ferries、port crane、quay crane

Offshore equipment：offshore drilling platform

Vehicle：cars、buses、vans、trucks、trains、subway

Pneumatic systems: air compressor、air brake

Oil resistance

High temperature resistance

Heat resistance

Aging resistance with long service life

Good flexibility without distortion
