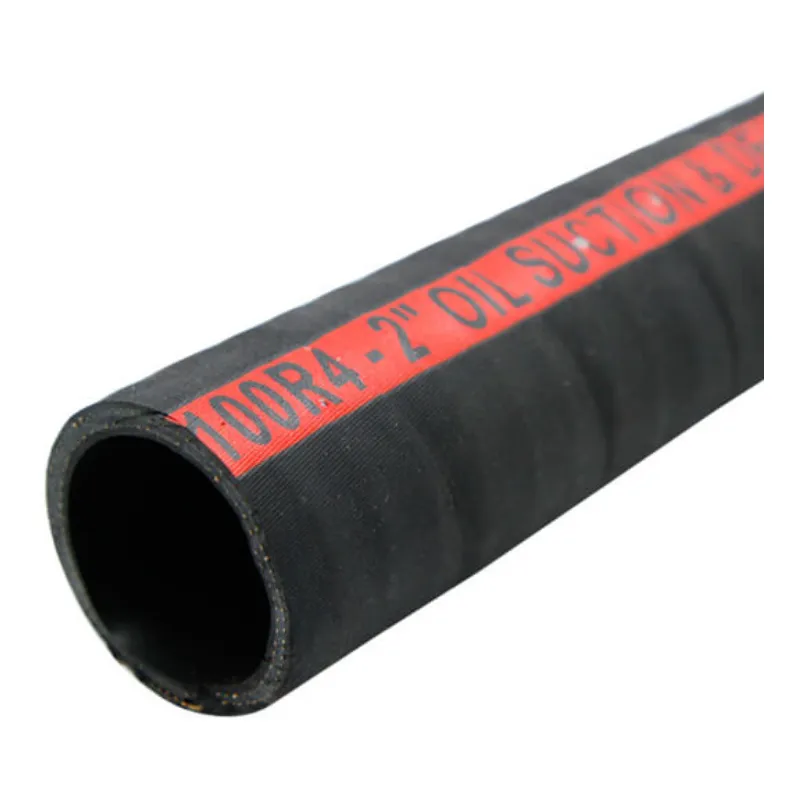

Textile Reinforced Hydraulic oil Suction Hose with embedded Steel Wire SAE 100 R4

Hydraulic hose SAE 100 R4 is high strength synthetic textile reinforced hydraulic hose with helix steel wire. Its used not only to suction water and oil but also discharge it. It consists of three layers. Inner tube, reinforcement and outer layer, the surface is wrapped surface. Widely used in the hydraulic systems. Petroleum base, water base liquids and hydraulic fluids in suction line, also in low pressure return line.

High pressure hose steel wire reinforced hydraulic rubber hose mainly used in mine hydraulic support, oil field development, suitable for engineering construction, lifting and transportation, etc.

What Performance Advantages Does SAE 100 R4 Offer?

The sae 100 r4 hydraulic oil suction and return hose is engineered specifically for systems where stable circulation is essential for long-term operational reliability. Unlike standard pressure hoses that only need to withstand positive pressure, a suction hose must maintain structural integrity when subjected to negative pressure. When hydraulic pumps draw oil from the reservoir, the internal vacuum forces can cause low-quality hoses to collapse, leading to restricted oil flow, pump cavitation, and energy loss. This hose incorporates embedded steel wire reinforcement designed to prevent collapse while maintaining a clear, unobstructed flow path even during cold starts when oil viscosity is high. The textile braided layer provides strength without sacrificing flexibility, making it suitable for compact hydraulic layouts where bending and routing must be achieved without compromising the hose’s internal structure.

In heavy machinery used in construction, mining, agriculture, and industrial manufacturing, hoses are routinely exposed to mud, stone impact, vibration, and sharp movement cycles. The outer protective layer of the r4 hose is formulated to resist abrasion, weathering, and exposure to hydraulic oil mist and minor chemical contact. This extends the hose’s operating life significantly, preventing early cracking or surface degradation. The inner tube is oil-resistant and designed to maintain smooth internal surface conditions, preventing sediment accumulation and pressure surge during return cycles. As hydraulic systems operate continuously, consistent suction efficiency is critical to preventing thermal imbalance and pump strain. The ability of this hose to preserve consistent oil flow directly contributes to reduced fuel consumption and lower equipment fatigue.

Our production model ensures consistency through complete in-house control of raw materials, reinforcement braiding, curing, and final inspection. Every 100r4 hydraulic hose undergoes collapse resistance testing, bending cycle assessment, and thermal aging simulation to verify performance under real-world mechanical stress. Additionally, because we operate using a direct-from-factory supply structure, customers benefit from stable pricing, reduced procurement delays, and guaranteed batch-to-batch quality uniformity. This allows end users to invest in hydraulic components that contribute to equipment reliability rather than frequent replacement.

Where Is SAE100R4 Hose Commonly Applied?

The sae100r4 hydraulic hose is widely used in suction and return lines where hydraulic oil must circulate reliably to maintain system equilibrium. In equipment such as excavators, backhoes, skid-steer loaders, agricultural tractors, forestry machinery, hydraulic presses, and industrial power units, oil must be drawn from the tank to the pump and then returned through a low-pressure system. Suction hoses in these environments face continuous negative pressure, high fluid temperatures, and constant movement. If the hose collapses or loses flexibility in low-temperature conditions, the pump may cavitate, leading to vibration, reduced pressure output, and accelerated internal wear. The steel wire and textile reinforcement structure of the sae 100r4 hose supports consistent suction performance, allowing machinery to maintain stable operating cycles without performance decay.

Outdoor machinery requires hoses that can handle unpredictable exposure conditions. Dust, gravel, hydraulic fluid splash, mechanical rubbing, and UV sunlight frequently attack the outer surface. The r4 hydraulic hose uses an abrasion-resistant and weather-stable outer cover, enabling it to perform reliably in soil excavation environments, road construction projects, and remote agricultural fields. The hose retains flexibility over long usage time, preventing installation fatigue and reducing strain on fittings and connectors. Because hydraulic lines often run alongside moving mechanical arms, the ability to handle constant vibration and repetitive motion is crucial for safety and mechanical life extension.

Our manufacturing approach emphasizes support for customization, allowing customers to specify hose lengths, diameters, reinforcement priorities, and operating tolerance needs. This ensures that hydraulic systems are not forced to adapt to standard parts, but instead receive components engineered to match their actual operational layout and workload conditions. With direct factory oversight, customers benefit from lower total lifecycle costs and improved system uptime.

How Do Specifications Affect R4 Hose Selection?

Choosing the correct 100r4 hose requires understanding more than simply diameter and length. Key operational variables include vacuum pressure intensity, minimum bend radius, oil compatibility, and sustained temperature exposure. Suction lines experience negative pressure, meaning the hose must resist inward collapse while remaining adequately flexible. The sae 100 r4 hose specifications provide structural guidelines, including reinforcement density, tube hardness, wall thickness, and maximum recommended suction load. Selecting a hose without proper collapse resistance may result in internal wall folding, restricting flow and damaging pumps. Likewise, hoses that are too rigid can be difficult to route, causing mechanical stress and premature wear at fittings.

Real working environments further influence the correct 100r4 hose spec. For example, mining vehicles require maximum abrasion shielding against rock edges, while industrial factory equipment may need extended high-temperature oil resistance. Equipment that operates in sub-zero climates requires a hose compound that resists stiffening to maintain suction efficiency during cold startup cycles. Bending capability is equally essential—installers must consider hose routing paths, joint movement, articulation frequency, and spacing around critical hydraulic components.

Our company provides detailed data sheets, technical consultation, and custom reinforcement layering tailored to each application. Every production run undergoes simulated negative pressure collapse testing, hot-oil aging cycles, and dynamic flex endurance evaluation. With direct sourcing and controlled processing, we offer consistent performance stability and long-service operational reliability, ensuring customers achieve the intended system lifespan without unexpected maintenance interruptions.

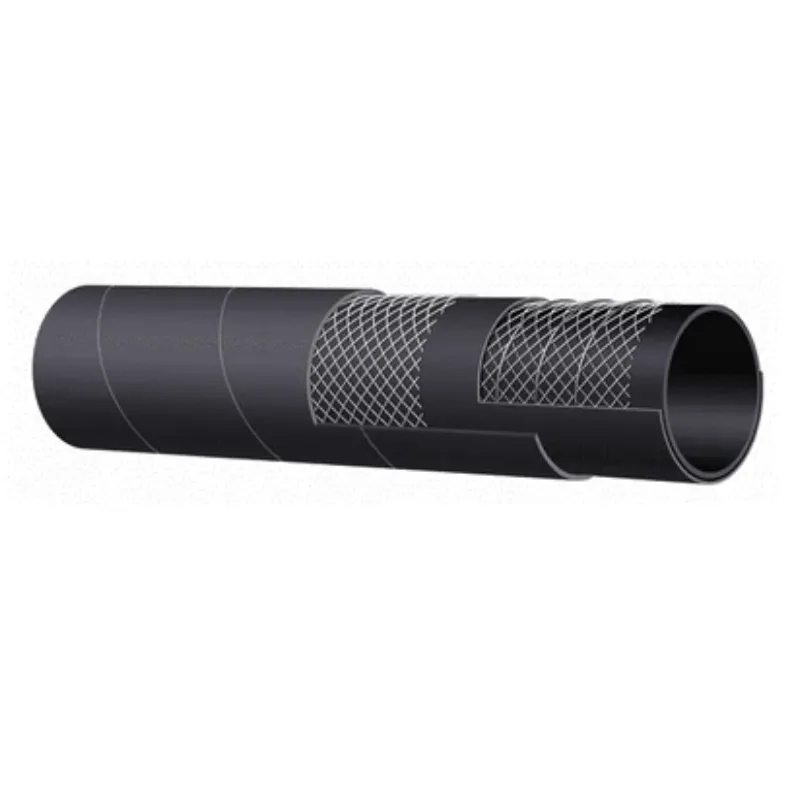

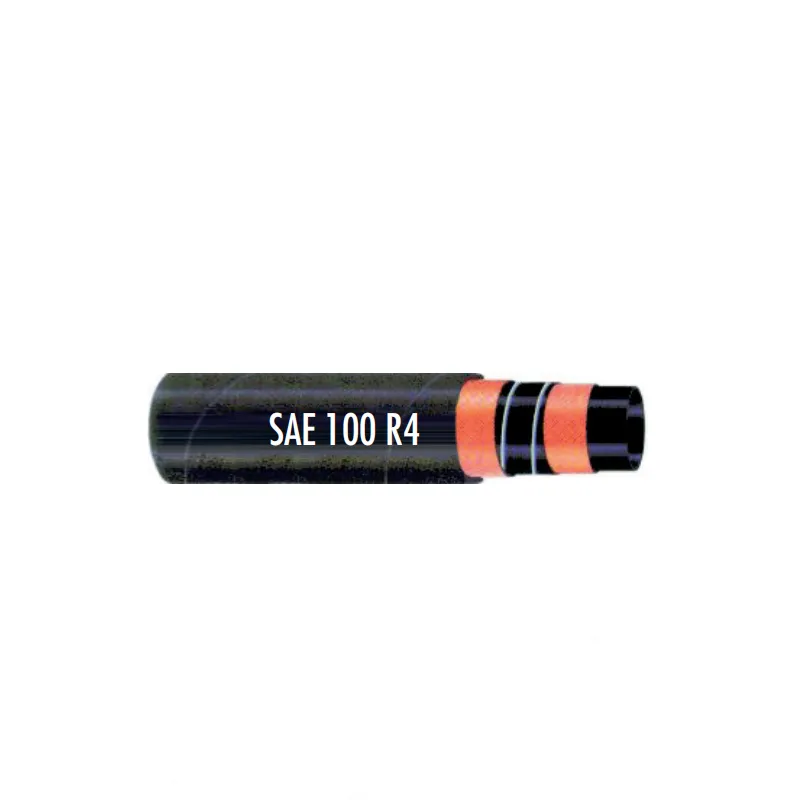

The hydraulic hose SAE 100 R4 has three layers of different material structure. The inner tube is made from oil resistant synthetic rubber, therefore it can’t be corroded by the petroleum base fluid and liquid.

The reinforcement structure has single layer or multi-layer of steel wire braid、fiber braid and high tensile textile braid, cloth reinforced respectively. The pressure of the rubber hose depends on the material of the reinforcement, therefore the hose can withstand internal and external high pressure.

The cover is made from high quality rubber and to play the protective function, so the rubber hose could resistant to abrasion, corrosion, air oxidation, extreme weather, ozone, aging, sunlight and cutting, also with longer service life.

The surface is available in smooth surface or cloth surface, depending on the type of the rubber hose.

SAE 100 R4

Municipal engineering: suction and drainage pipe for water and liquid

Mine hydraulic support：excavator

Oil field mining：drilling equipment、drilling rig、oil pump

Engineering construction：lift machine、scraper、loader、drill、pile driver

Road construction machinery：rock crusher、stone crusher

Ships：cruise ship、fishing boat、yachts、ferries、port crane、quay crane

Offshore equipment：offshore drilling platform

Vehicle：cars、buses、vans、trucks、trains、subway

Pneumatic systems: air compressor、air brake

Oil resistance and high pressure resistance

High temperature resistance and heat resistance

Aging resistance with long service life

Good flexibility without distortion
