SAE 100 R1 Hydraulic Hose: Durable, High-Pressure Performance

Introduction to SAE 100 R1 Hydraulic Hose: The Backbone of Industrial Hydraulics

In the demanding world of industrial and mobile hydraulics, reliable power transmission is paramount. At the heart of countless machinery operations lies the hydraulic hose – a critical component that conveys pressurized fluid to enable mechanical work. Among the most fundamental and widely utilized standards is the sae 100 r1 hydraulic hose. This specification defines a single wire braid reinforced hose, engineered for medium-pressure applications, offering a robust blend of durability, flexibility, and consistent performance across diverse environments. For B2B decision-makers and engineers, understanding the intricacies of the SAE 100 R1 standard is essential for optimizing system efficiency, ensuring operational safety, and minimizing downtime in critical applications. Its ubiquity stems from its proven track record in scenarios where robust fluid conveyance is non-negotiable.

Industry Trends and the Enduring Relevance of SAE 100 R1 Hoses

The hydraulic industry is continuously evolving, driven by demands for higher efficiency, increased power density, and enhanced environmental responsibility. While advanced multi-spiral hoses address ultra-high pressure applications, the fundamental need for reliable medium-pressure conveyance ensures the enduring relevance of the sae 100 r1 standard. Current trends indicate a strong focus on materials science for improved synthetic rubbers offering broader temperature ranges and superior chemical resistance, as well as advancements in reinforcement wire technologies for better fatigue life. Furthermore, digitalization in manufacturing, including IoT-enabled quality control, is leading to more consistent and dependable hose production. The demand for lightweight yet robust components is also influencing design, pushing manufacturers to innovate within established standards like sae 100 r1 at to offer enhanced performance without compromising on form factor. These trends collectively underline the continued importance of a well-engineered 100r1 hydraulic hose in modern machinery across all sectors.

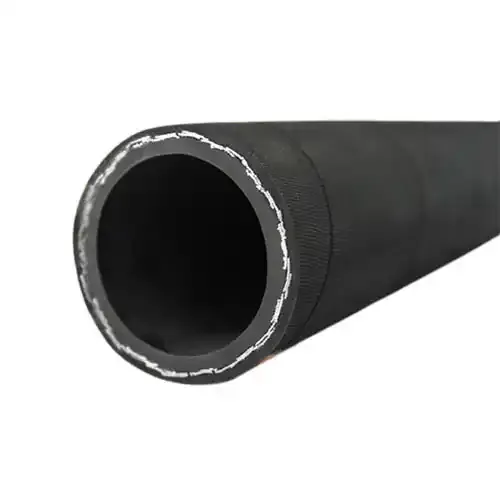

Figure 1: Cross-section demonstrating the robust single wire braid reinforcement typical of SAE 100 R1 hoses.

Technical Specifications of SAE 100 R1 / EN853 1SN S

The sae 100 r1 standard, often paralleled with EN853 1SN, specifies a hydraulic hose designed for medium-pressure applications with petroleum-based hydraulic fluids. Its construction is meticulously engineered for optimal performance and longevity.

Hose Construction:

• Inner Tube: Typically made from oil-resistant synthetic rubber, often Nitrile Butadiene Rubber (NBR), designed to resist degradation from hydraulic fluids and ensure minimal fluid permeation.
• Reinforcement: A single braid of high-tensile steel wire. This braiding provides the structural integrity necessary to withstand specified working pressures and impulse cycles. The term "single wire braid" refers to the method of weaving the steel wire around the inner tube, providing crucial burst strength.
• Outer Cover: Abrasion, weather, and oil-resistant synthetic rubber. This outer layer protects the delicate wire reinforcement from environmental damage, mechanical wear, and ozone exposure, extending the service life of the 100r1 hose.

Key Performance Parameters (Typical for Steel Wire Reinforced Hydraulic Hose SAE 100 R1 / EN853 1SN S):

These specifications ensure that a 100r1 hose can consistently perform under defined operating conditions, making it a reliable choice for a vast array of hydraulic systems. Adherence to these standards is critical for safety and operational efficiency.

The Manufacturing Process: Ensuring SAE 100 R1 Quality and Reliability

The production of a high-quality sae 100 r1 hydraulic hose is a sophisticated multi-stage process, demanding precision engineering and rigorous quality control. Each step is critical to achieving the hose's specified performance characteristics and service life.

Process Flow:

1. Inner Tube Extrusion: The process begins with the extrusion of the oil-resistant synthetic rubber (e.g., NBR) to form the seamless inner tube. Precise control over material composition, temperature, and pressure during extrusion ensures a uniform wall thickness and a smooth interior, critical for minimizing flow restriction and preventing fluid degradation.
2. Reinforcement Layer Application: After the inner tube has cooled, a single layer of high-tensile steel wire is braided around it. Modern braiding machines precisely control the wire tension and angle to ensure uniform coverage and optimal stress distribution, which directly impacts the hose's pressure rating and impulse resistance. This is where the "100r1" designation derives its core reinforcement characteristic.
3. Outer Cover Extrusion: An abrasion-resistant and weather-resistant synthetic rubber compound is then extruded over the reinforced core. This outer cover protects the reinforcement from environmental factors, chemical exposure, and physical damage, enhancing the hose's longevity and performance in harsh industrial settings.
4. Vulcanization (Curing): The assembled hose is then subjected to a controlled heating process known as vulcanization. This chemical process cross-links the polymer chains in the rubber, transforming the material into a highly elastic and durable product with enhanced mechanical properties and resistance to heat and chemicals.
5. Finishing and Testing: Post-vulcanization, the hose undergoes rigorous testing. This includes:
   • Dimensional Checks: Verifying inner and outer diameters, and wall thickness against ISO 1436 and EN 853 standards.
   • Proof Pressure Testing: Applying a hydrostatic pressure for a specified duration to ensure structural integrity.
   • Impulse Testing: Subjecting the hose to millions of pressure cycles at specified temperatures to evaluate fatigue resistance and service life.
   • Burst Pressure Testing: Determining the ultimate pressure resistance, typically four times the working pressure.
6. Marking and Packaging: Finally, the hose is marked with relevant specifications (e.g., SAE 100 R1, manufacturer, date code) and prepared for distribution.

This meticulous process, adhering to international standards like ISO and EN, ensures that each sae 100r1 hose delivered meets stringent performance criteria, offering advantages in terms of predictable service life and reliability, which are crucial for demanding industries such as petrochemical, metallurgy, and water supply & drainage. The emphasis on corrosion resistance in material selection for the outer cover further extends its operational lifespan in aggressive environments.

Figure 2: Production line illustrating the precision braiding process for the steel wire reinforcement.

Diverse Application Scenarios for SAE 100 R1 Hydraulic Hoses

The versatility and robust nature of the 100r1 hose make it an indispensable component across a wide spectrum of industries. Its capability to handle medium pressures reliably, coupled with its resistance to various operating conditions, positions it as a go-to solution for many hydraulic systems.

Key Industries and Examples:

• Construction: Used extensively in excavators, loaders, bulldozers, and other heavy machinery for functions like steering, boom operation, and bucket control. The abrasion-resistant cover ensures longevity in rough terrain.
• Agriculture: Essential for tractors, harvesters, and irrigation systems, powering implements such as plows, cultivators, and sprayers. The sae 100 r1 hose provides the consistent performance needed for demanding field operations.
• Mining: In underground and surface mining equipment, where conditions are particularly harsh, these hoses transfer hydraulic power for drilling rigs, conveyors, and heavy-duty vehicles, resisting wear and maintaining integrity in abrasive environments.
• Material Handling: Forklifts, cranes, and aerial work platforms rely on sae 100 r1at hoses for lifting, tilting, and steering mechanisms, ensuring smooth and precise control of heavy loads.
• Industrial Hydraulics: From factory automation to metalworking presses, injection molding machines, and industrial robotics, the 100r1 hydraulic hose provides the vital link for fluid power, offering reliability and predictable service in continuous operation.
• Water Supply & Drainage: While less direct in conveying water, hydraulic systems within large-scale pumping stations and water treatment facilities often use 100r1 hoses for control mechanisms and auxiliary power.

In these typical application scenarios, the advantages of a well-engineered sae 100 r1 hose manifest as reduced maintenance requirements, prolonged equipment lifespan, and enhanced operational safety. Its ability to withstand a wide temperature range and resist common hydraulic fluids makes it a highly adaptable choice for global applications.

Key Technical Advantages of SAE 100 R1 Hoses

Beyond its standard compliance, the inherent design and material selection for sae 100 r1 hoses deliver several critical technical advantages that directly contribute to superior system performance and total cost of ownership for B2B applications.

• Exceptional Durability and Abrasion Resistance: The robust synthetic rubber outer cover is specifically formulated to withstand harsh external conditions, including abrasion from movement against other components or environmental debris. This significantly extends the hose's operational life, particularly in dynamic or exposed applications.
• Reliable Medium-Pressure Capability: The single high-tensile steel wire braid reinforcement provides a strong, stable structure capable of handling the specified working pressures (up to 250 Bar, depending on bore size) with a generous safety factor. This reliability is crucial for consistent hydraulic power delivery.
• Wide Operating Temperature Range: With an typical operating range from -40°C to +100°C (-40°F to +212°F), the sae 100r1 hose maintains its mechanical properties and fluid compatibility across diverse climatic and operational temperatures, preventing embrittlement at low temperatures and degradation at high temperatures.
• Excellent Chemical and Fluid Resistance: The inner tube's oil-resistant synthetic rubber composition ensures compatibility with a broad range of hydraulic fluids, including petroleum-based oils, water-glycol, and some synthetic esters. This minimizes the risk of tube degradation, preventing contamination and ensuring fluid integrity.
• Corrosion Resistance: While primarily a feature of the outer cover's material properties, the hose's design inherently offers good resistance to environmental corrosion, including ozone and UV radiation, prolonging its life in outdoor and exposed settings.
• Optimized Flexibility and Installation: Compared to more rigid multi-spiral hoses, the single wire braid construction offers a good balance of strength and flexibility, allowing for easier routing and installation in tight spaces, which can lead to energy saving during installation and operation due to less stress on components.
• Cost-Effectiveness and Longevity: The robust construction and adherence to international standards result in a hose with a predictable service life and reduced frequency of replacement. This translates into lower maintenance costs, less downtime, and a higher return on investment over the equipment's lifespan.

These advantages collectively position the 100r1 as a highly reliable and economically viable solution for myriad hydraulic power transmission needs, demonstrating why it remains a benchmark in the industry.

Figure 3: A series of high-pressure hoses undergoing impulse testing to ensure long-term reliability.

Choosing Your Vendor: A Comparison Framework for SAE 100 R1 Procurement

Selecting the right supplier for sae 100 r1 hydraulic hoses is as crucial as understanding the hose itself. The quality, consistency, and support offered by a vendor significantly impact the long-term performance and reliability of your hydraulic systems. When evaluating potential partners, consider the following aspects:

Vendor Comparison Factors:

For critical applications where system uptime and safety are paramount, partnering with a vendor offering premium features and comprehensive support for their 100r1 products often yields significant long-term benefits despite potentially higher initial costs.

Customized Solutions and Engineering for Specific Needs

While the sae 100 r1 standard provides a robust foundation, many industrial applications require hydraulic hose assemblies that go beyond standard off-the-shelf offerings. High-quality manufacturers recognize this need and provide extensive customization options, collaborating closely with clients to engineer solutions perfectly tailored to specific operational requirements.

Customization possibilities for sae 100r1 hose often include:

• Specific Lengths and Tolerances: Precision-cut lengths, crucial for optimal system routing and minimizing material waste.
• End Fittings and Connections: A vast array of end fittings (e.g., JIC, NPT, ORFS, BSP, DIN) in various materials (carbon steel, stainless steel) to ensure perfect compatibility with existing machinery and pressure ratings.
• Specialized Outer Covers: For environments requiring enhanced resistance to extreme abrasion, flames, ozone, UV, or chemicals, custom outer cover compounds can be applied. This ensures the sae 100r1 hose maintains integrity even in the most aggressive settings.
• Color Coding and Branding: Custom hose colors for easy identification within complex hydraulic systems, or private labeling with client logos and part numbers for inventory management.
• Pre-assembled Kits: Providing complete hose assemblies with fittings, sleeves, and protective elements, ready for immediate installation, reducing assembly time and potential errors on-site.

Engaging in collaborative engineering with a knowledgeable supplier ensures that the final hose assembly not only meets the technical performance requirements but also integrates seamlessly into the broader system, optimizing performance and reducing potential points of failure.

Real-World Application Case Studies and Customer Experience

The true testament to the reliability and performance of sae 100 r1 hydraulic hoses lies in their successful application in challenging industrial environments. Here are simulated case studies that reflect typical scenarios where these hoses excel:

Case Study 1: Heavy Construction Equipment Fleet

• Challenge: A large construction firm faced frequent hose failures on its excavator fleet due to constant abrasion and dynamic pressure spikes in aggressive dusty environments. Downtime was costly.
• Solution: Replacement of existing hydraulic lines with custom-fabricated 100r1 hydraulic hose assemblies featuring an enhanced abrasion-resistant outer cover and robust, crimped fittings.
• Outcome: The service life of the hoses increased by 70%, leading to a significant reduction in unscheduled maintenance and a 15% improvement in overall fleet operational availability within the first year. The client reported exceptional durability even under continuous harsh conditions.

Case Study 2: Agricultural Machinery Modernization

• Challenge: An agricultural equipment manufacturer needed reliable, cost-effective hydraulic lines for a new series of tractors. The hoses needed to withstand exposure to agricultural chemicals and wide temperature fluctuations.
• Solution: A bespoke sae 100r1 hose solution with an inner tube compound optimized for chemical resistance and an outer cover treated for enhanced UV and ozone protection.
• Outcome: The new hose assemblies exceeded lifespan expectations in field tests, contributing to the tractor's overall reliability rating. The manufacturer noted significant positive feedback from farmers regarding reduced hose-related issues and robust performance throughout the growing seasons.

These examples underscore the importance of selecting high-quality sae 100 r1 hose products from reputable manufacturers who emphasize material quality, precise manufacturing, and thorough testing. Customer feedback consistently highlights that investing in superior hose technology leads to long-term operational savings and improved system integrity.

Figure 4: Finished hydraulic hose assemblies ready for dispatch, showcasing precision crimping.

Authoritativeness and Trustworthiness: Our Commitment to Quality

Our dedication to providing high-quality sae 100 r1 hydraulic hoses is underpinned by a commitment to industry standards, transparent processes, and verifiable quality assurance.

Certifications and Compliance:

We operate under stringent quality management systems, notably certified to ISO 9001, ensuring that every stage of design, development, production, installation, and service meets international quality standards. Our products consistently comply with key industry specifications such as SAE J517 (for sae 100 r1) and EN 853 1SN, providing engineers with certified and reliable components for their critical applications. Furthermore, our raw materials and finished products undergo regular testing by independent laboratories, validating their adherence to published technical data.

Partnerships and Experience:

With over two decades of experience in the hydraulic hose manufacturing sector, we have cultivated long-standing relationships with leading OEMs and industrial distributors worldwide. Our history of supplying critical components to sectors like heavy machinery, marine, and energy speaks to our proven track record and expertise. We pride ourselves on transparent communication and collaborative problem-solving, ensuring our clients receive not just products, but comprehensive solutions.

Data-Driven Assurance:

Every batch of our hydraulic hose undergoes internal quality checks, including dimensional accuracy, pressure testing, and material integrity verification. This meticulous approach, backed by detailed test reports, ensures that our products consistently meet or exceed the performance parameters outlined for 100r1 applications.

Frequently Asked Questions (FAQ) about SAE 100 R1 Hydraulic Hoses

Logistics and Support: Lead Time, Warranty, and After-Sales Service

Understanding the logistical and support framework is essential when partnering with a hydraulic hose supplier. Our commitment extends beyond product delivery to comprehensive client support.

Lead Time and Fulfillment:

We maintain optimized production schedules and robust inventory management to ensure competitive lead times for both standard and customized sae 100r1 hose orders. For urgent requirements, expedited manufacturing and shipping options are available. Our global logistics network facilitates efficient delivery to various international destinations, minimizing supply chain disruptions for our B2B clients.

Warranty Commitments:

All our sae 100 r1 hydraulic hoses are backed by a comprehensive warranty against manufacturing defects and material failures, provided they are installed, operated, and maintained according to industry best practices and our product guidelines. Specific warranty terms and conditions are provided with each quotation and order, offering peace of mind to our customers.

Dedicated Customer Support:

Our team of technical experts and customer service professionals is readily available to provide comprehensive after-sales support. This includes technical assistance for installation and maintenance, troubleshooting, and prompt resolution of any product-related queries or concerns. We are committed to fostering long-term partnerships through reliable products and unparalleled service.

Conclusion: The Enduring Value of SAE 100 R1 Hydraulic Hoses

The sae 100 r1 hydraulic hose remains a cornerstone in fluid power transmission, celebrated for its reliable performance, robust construction, and cost-effectiveness in medium-pressure applications. From the meticulous manufacturing process, encompassing precise extrusion, advanced wire braiding, and rigorous testing, to its widespread adoption across construction, agriculture, mining, and industrial sectors, its value is undeniable. By understanding its technical specifications, appreciating its key advantages, and partnering with a reputable vendor committed to quality and customization, businesses can significantly enhance the efficiency, safety, and longevity of their hydraulic systems. The continuous evolution of materials and manufacturing techniques ensures that the 100r1 hydraulic hose will continue to be a vital component in modern industrial machinery for years to come.
