Field notes on sae 100 r6: the quiet workhorse of low‑pressure hydraulics

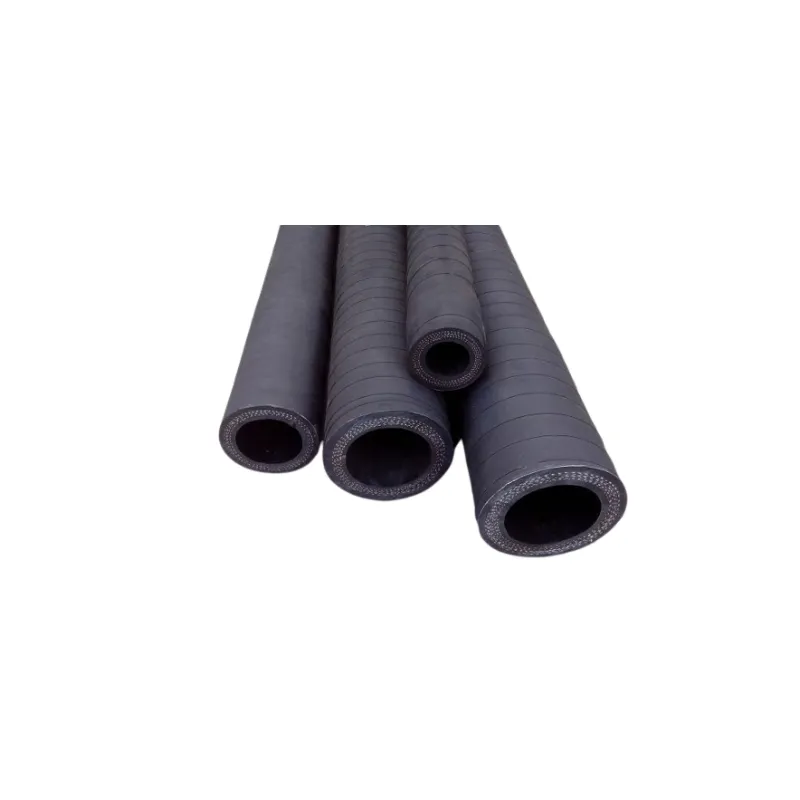

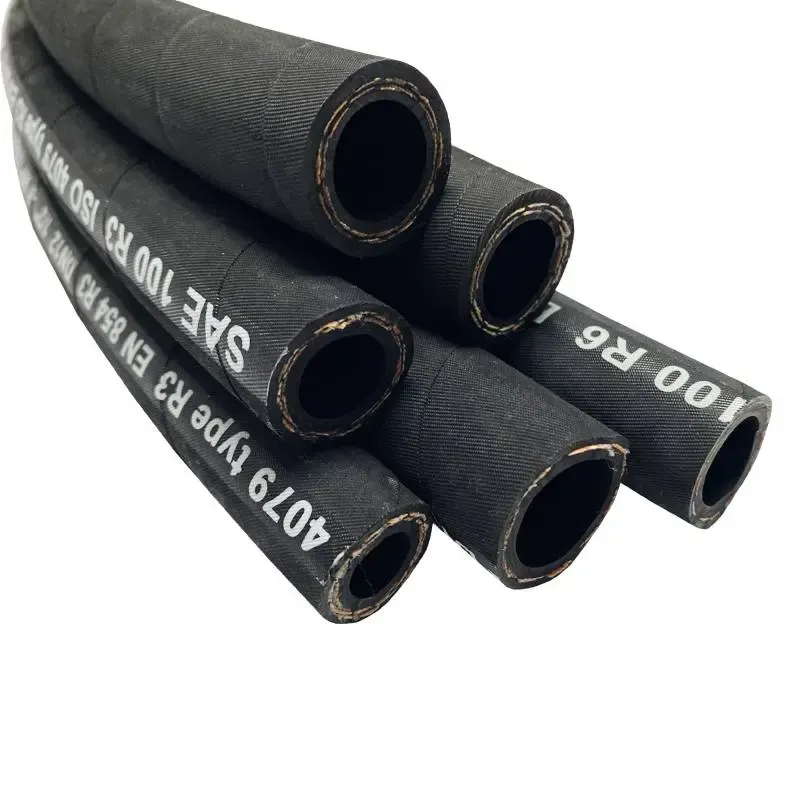

I spend a lot of time around mobile equipment shops and, to be honest, the hose that saves the most downtime isn’t always the flashiest spiral-steel design. On return lines, lube circuits, and low-pressure hydraulics, the unassuming sae 100 r6 textile-braid hose keeps fleets moving. The model I’ve been looking at lately is the “Textile Braid Reinforced Hydraulic Hose SAE100 R3+R6” coming out of Daowang Town, Guangrao County, Dongying City, Shandong Province 257335. It’s built for real-world abuse without the premium price tag.

What’s trending (and why it matters)

Electrification and lightweighting are nudging OEMs to use more textile-braid return lines—less weight, easier routing, and lower cost. Add in biodegradable fluids and tighter bend radii on compact machines, and sae 100 r6 ends up being a smart, pragmatic pick. Many customers say it’s “fit-and-forget,” which is about the highest praise a maintenance manager can give.

Construction and process flow

• Inner tube: oil-resistant synthetic rubber (often NBR blend) for mineral and many bio-based fluids.
• Reinforcement: single textile braid for sae 100 r6 (two braids for R3 variant), giving flexibility and lower weight.
• Cover: synthetic rubber with ozone/abrasion protection; color and branding customizable.

Process (abridged): compound mixing → tube extrusion → textile braiding → cover extrusion → continuous vulcanization → proof/burst testing → branding/cutting. Each reel is hydrostatically tested; burst must hit ≥4× working pressure under SAE J343 protocols.

Product specs (typical, real-world may vary)

Parameter	R6 Typical Value
Standards	SAE J517 (100R6), tested per SAE J343; ISO 1402 hydrostatic
Size range	DN6–DN25 (1/4"–1")
Working pressure	≈2.1–3.5 MPa (300–500 psi) depending on size
Burst pressure	≥4× WP (typical test data: 9–14 MPa)
Temp range	-40°C to +100°C (up to +120°C intermittent)
Cover options	Black/colored, abrasion/ozone upgrade, MSHA flame-rated (optional)
Certifications	ISO 9001; REACH/RoHS compliance declaration available

Applications and service life

Return lines on excavators and skid steers, hydraulic oil transfer, fuel/oil suction (check compatibility), lube lines, air/water low-pressure, agricultural sprayers, forklifts. In sensible routing (no kinks, proper clamps), sae 100 r6 typically sees 2–5 years of service. Ozone cracking is the usual end-of-life—specifying an upgraded cover helps a lot.

Case snapshot: a regional forklift fleet swapped mixed-return hoses for R6 across 120 units. Leak incidents dropped ≈18% over 12 months; inventory SKUs shrank from 27 to 11. Surprising? Not really—consistent bend radius and spec discipline pay off.

Customization (because one size rarely fits all)

• Colors, layline, and private label printing.
• Long reels (up to 100–200 m) for fewer joints.
• Enhanced abrasion or flame-resistant cover; conductive/static-dissipative options.
• Kitted assemblies with fittings and pressure-test certificates.

Vendor snapshot (quick comparison)

Vendor	Lead Time	MOQ	Certs	Notes
JYHose (Shandong)	10–20 days	≈500–1000 m/size	ISO 9001, REACH/RoHS	Strong on custom colors/printing; stable textiles
Regional Fabricator	Stock to 7 days	Small (cut-to-length)	Varies	Fast assemblies; higher unit cost
Trading House	15–30 days	≈1000–2000 m	Distributor-level	Broad sourcing; spec consistency can vary

Testing and documentation

Look for batch test sheets showing proof test at 2× WP, burst verification, dimensional checks (OD, concentricity), and ozone cabinet exposure per ISO 7326. If you run fire-prone environments, ask for MSHA flame resistance. It seems minor—until you need the paperwork.

Citations

1. SAE J517: Hydraulic Hose and Hose Assemblies.
2. SAE J343: Test and Test Procedures for Hose.
3. ISO 1402: Rubber and plastics hoses — Hydrostatic testing.
4. ISO 7326: Rubber and plastics hoses — Ozone resistance.
5. MSHA Flame Resistance Listing; REACH/RoHS compliance guidelines.
