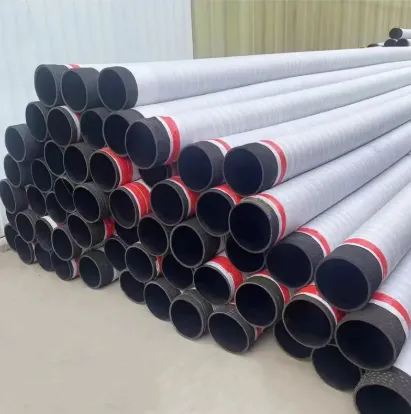

SAE 100R4 Hose: Complete Guide to Structure, Applications, And Specifications

The SAE 100R4 hose is a widely used hydraulic and industrial hose designed primarily for suction and return lines. Thanks to its reinforced structure, oil resistance, and durability, the 100R4 hydraulic hose plays a critical role in many fluid transfer systems across industries such as construction, agriculture, mining, and manufacturing. This article provides a comprehensive overview of the SAE 100R4, covering its design, applications, and technical specifications to help users better understand why this hose standard is essential.

What Is SAE 100R4 Hose?

The SAE 100R4 hose, also written as sae100r4 or 100r4 hose, is a hose standard defined by the Society of Automotive Engineers (SAE). It is specifically designed for low-pressure hydraulic suction and return applications where flexibility, vacuum resistance, and oil compatibility are required.

Unlike high-pressure hydraulic hoses, the SAE 100R4 hose is engineered to handle negative pressure (vacuum) rather than extreme positive pressure. Its construction typically includes a thick inner tube, textile reinforcement, and a weather- and oil-resistant outer cover. This design allows the hose to maintain its shape under suction conditions without collapsing.

The 100r4 hydraulic hose is commonly used to transfer petroleum-based fluids, water-based hydraulic fluids, lubricating oils, and antifreeze solutions. Because of its versatility, it has become a standard choice in hydraulic systems where fluid return lines are essential.

Applications of 100R4 Hose

The sae 100r4 standard is suitable for a wide range of industrial and mobile equipment applications. Its ability to withstand vacuum and moderate pressure makes it ideal for systems that require reliable fluid circulation.

Industrial Machinery

In factories and processing plants, SAE 100R4 hose is widely used in hydraulic return lines. It safely channels hydraulic fluid back to reservoirs, ensuring smooth system operation and preventing leaks or contamination.

Construction and Earthmoving Equipment

Excavators, loaders, cranes, and bulldozers rely on 100r4 hose for suction and return functions. These machines often operate in harsh environments, and the durable outer cover of the sae 100r4 hose helps resist abrasion, ozone, and weather exposure.

Agricultural Equipment

Tractors, harvesters, and irrigation systems frequently use 100r4 hydraulic hose to handle oil and fluid transfer. Its flexibility allows easy routing around complex machinery layouts, while its oil-resistant tube ensures long service life.

Marine and Transportation

In marine engines and transport vehicles, SAE 100R4 hoses are commonly used for fuel, oil return, and coolant suction lines. Their reinforced construction helps maintain performance even under continuous vibration and movement.

Overall, the adaptability of the sae 100r4 hose makes it an indispensable component in many fluid power systems.

100R4 Hose Spec and Technical Characteristics

Understanding the 100r4 hose spec is essential for selecting the correct hose for your application. While exact specifications may vary slightly by manufacturer, the SAE standard defines key performance requirements.

Construction

A typical SAE 100R4 hose consists of:

Inner Tube: Oil-resistant synthetic rubber designed to handle petroleum-based and water-based fluids.

Reinforcement: One or more layers of textile braid or spiral, providing strength and vacuum resistance.

Outer Cover: Synthetic rubber that resists oil, abrasion, ozone, and weathering.

This layered structure allows the 100r4 hose to operate effectively in suction and return systems without collapsing or degrading prematurely.

Pressure Ratings

The 100r4 hydraulic hose is intended for low-pressure applications. Typical working pressures range from 150 to 300 PSI, depending on hose size and manufacturer. While it is not suitable for high-pressure hydraulic lines, it excels in suction and return duties.

Temperature Range

Most sae 100r4 hose products operate within a temperature range of approximately -40°C to +100°C (-40°F to +212°F). Some specialized versions may handle slightly higher temperatures, making them suitable for demanding industrial environments.

Size Range

The SAE 100R4 standard covers a wide range of inner diameters, commonly from 3/4 inch up to 4 inches or more. This variety allows engineers to select the appropriate hose size for different flow requirements.

Compatibility

According to 100r4 hose spec guidelines, these hoses are compatible with:

Petroleum-based hydraulic oils

Water-based hydraulic fluids

Lubricating oils

Diesel fuel and gasoline (within limits)

Antifreeze solutions

However, compatibility with specific chemicals should always be verified with the hose manufacturer.

Benefits of Choosing SAE 100R4

There are several reasons why the sae 100r4 standard remains popular across industries:

Excellent Vacuum Resistance: Designed specifically for suction lines, the 100r4 hose maintains its structure under negative pressure.

Durability: Reinforced construction and oil-resistant materials ensure long service life.

Flexibility: Easier installation in tight or complex routing systems.

Cost-Effective: Compared to high-pressure hydraulic hoses, SAE 100R4 hose offers reliable performance at a lower cost.

Wide Availability: Many manufacturers produce hoses meeting the 100r4 hose spec, ensuring easy replacement and sourcing.

The SAE 100R4 hose is a critical component in hydraulic and industrial fluid systems that require dependable suction and return lines. With its robust construction, flexible design, and proven performance, the 100r4 hydraulic hose continues to meet the demands of industries worldwide. By understanding its applications and 100r4 hose spec, engineers and buyers can confidently select the right hose for their systems, ensuring efficiency, safety, and long-term reliability.

Whether referred to as sae100r4, sae 100r4 hose, or simply 100r4 hose, this standard remains a trusted solution for low-pressure hydraulic fluid transfer.
