Single Wire Braid and Textile Covered Hydraulic Hose — SAE 100 R5

If you’ve worked around mobile hydraulics or on-highway systems, you’ve met sae 100r5. It’s a classic: single wire braid, textile cover, and a workhorse attitude. I’ve seen fleets swear by it for power steering return, medium-pressure oil lines, and even air brake (with the right fittings and approval). From Daowang Town, Guangrao County, Dongying City, Shandong Province 257335 to ports worldwide, it’s still a go-to.

What it’s made of (and why it matters)

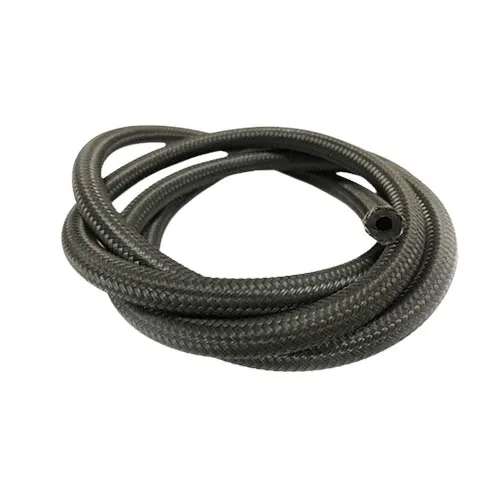

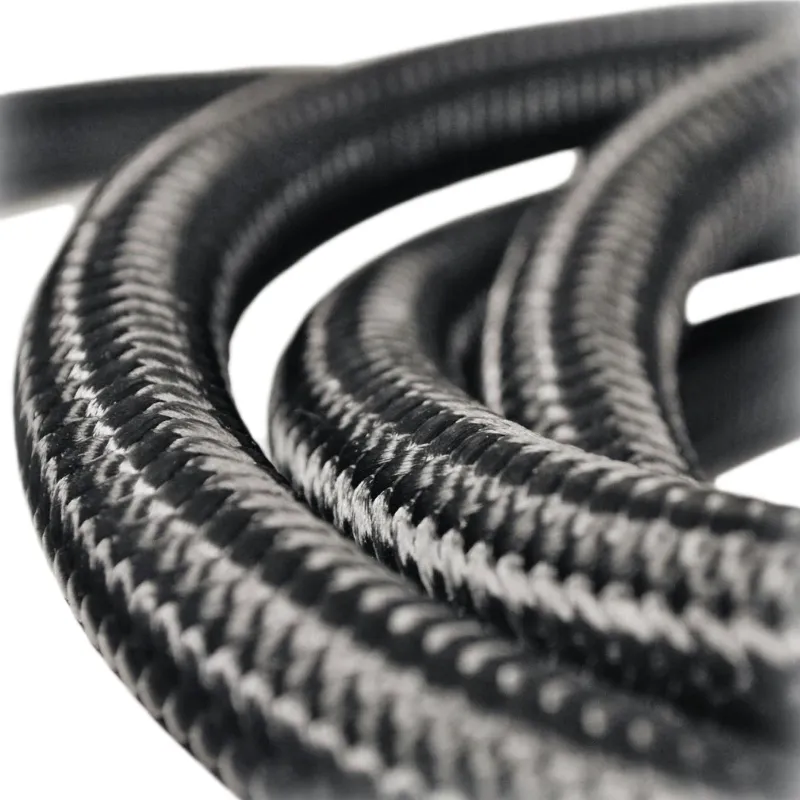

Construction is straightforward but effective: an inner tube of oil‑resistant synthetic rubber, single high-tensile steel wire braid reinforcement, and a textile braid cover—often impregnated for abrasion and oil resistance. In practice, sae 100r5 balances flexibility, respectable pressure ratings, and easy routing around tight engine bays.

Industry trends (quick take)

• Shift to bio‑based and low‑aromatic oils; hoses need better compatibility.
• Spec creep: fleets asking for SAE J343 impulse margins above minimums.
• Digital traceability—QR-coded hose lots and crimp specs on the invoice. Nice touch.

Typical specification snapshot

Size (ID)	Working Pressure	Burst (min)	Min Bend Radius	Temp Range	Construction
3/8″ (≈9.5 mm)	≈ 17–21 MPa (2500–3000 psi)	≥ 4× WP	≈ 90 mm	-40 to +100 °C (oil); air ≤ +70 °C	Oil‑resistant tube; 1 wire braid; textile cover
1/2″ (≈12.7 mm)	≈ 14–21 MPa (2000–3000 psi)	≥ 4× WP	≈ 125 mm	-40 to +100 °C	Same as above

Real‑world values vary by manufacturer and size; always verify the datasheet for your exact part number.

Where it shines

Use sae 100r5 in medium‑pressure hydraulics, diesel fuel lines, transmission oil coolers, and air brake (dry air) lines on trucks and buses. Many customers say the textile cover routes easier and resists chafing under clamps—surprisingly durable in engine compartments.

Process flow and quality checkpoints

• Materials: oil‑resistant NBR/SBR blend tube; high‑tensile steel wire; impregnated textile cover.
• Methods: mandrel extrusion, braiding (1 layer), textile wrapping, vulcanization, cover finishing.
• Testing: SAE J343 pressure/impulse; ISO 1402 hydrostatic; ISO 6803 impulse (≥150,000 cycles typical target); ozone/abrasion checks.
• Certs: ISO 9001; REACH/RoHS material declarations often available.
• Service life: around 3–5 years in mixed duty, assuming correct routing and fluid compatibility.

Vendor comparison (indicative)

Vendor	Lead Time	MOQ	Certifications	Customization	Warranty
JYHose (Shandong)	≈ 2–4 weeks	Flexible (project‑based)	ISO 9001; material RoHS/REACH	Brand color, private label, cut‑length kits	12–24 months typical
Competitor A	3–6 weeks	Standard pallet	ISO 9001	Limited	12 months
Competitor B	Stock on select sizes	Box level	ISO 9001	Color stripes only	6–12 months

Customization and fitment

For sae 100r5, ask for: custom cover color, fire‑sleeve pre‑install, cut‑and‑crimp assemblies, and QR traceability. Also, insist on crimp charts matched to your ferrules; mismatches cause most early failures.

Quick case note

A city bus operator swapped aging mixed‑spec hoses for JYHose sae 100r5 on steering return and cooler lines. After 12 months, leak incidents dropped by ≈38% and clamp abrasion marks were noticeably lower, according to their maintenance log. Not a controlled lab test, but compelling.

Testing snapshot (typical data)

• Proof test: 2× WP (SAE J343)
• Burst: ≥4× WP (sample set)
• Impulse: ≥150,000 cycles at rated temp (ISO 6803), some sizes validated to 200,000
• Ozone: 72 h, 50 pphm, no cracks (visual)

Customer feedback: “Routes cleanly, fewer rub points, and the textile cover doesn’t shred like I feared.” That’s echoed by more than one fleet manager, to be honest.

Authoritative references

1. SAE J517: Hydraulic Hose
2. SAE J343: Method of Impulse Testing of Hydraulic Hose and Hose Assemblies
3. ISO 1402: Rubber and plastics hoses — Hydrostatic testing
4. ISO 6803: Rubber or plastics hoses — Hydraulic pressure impulse test without flexing
5. SAE J1273: Recommended Practices for Hydraulic Hose Assemblies
