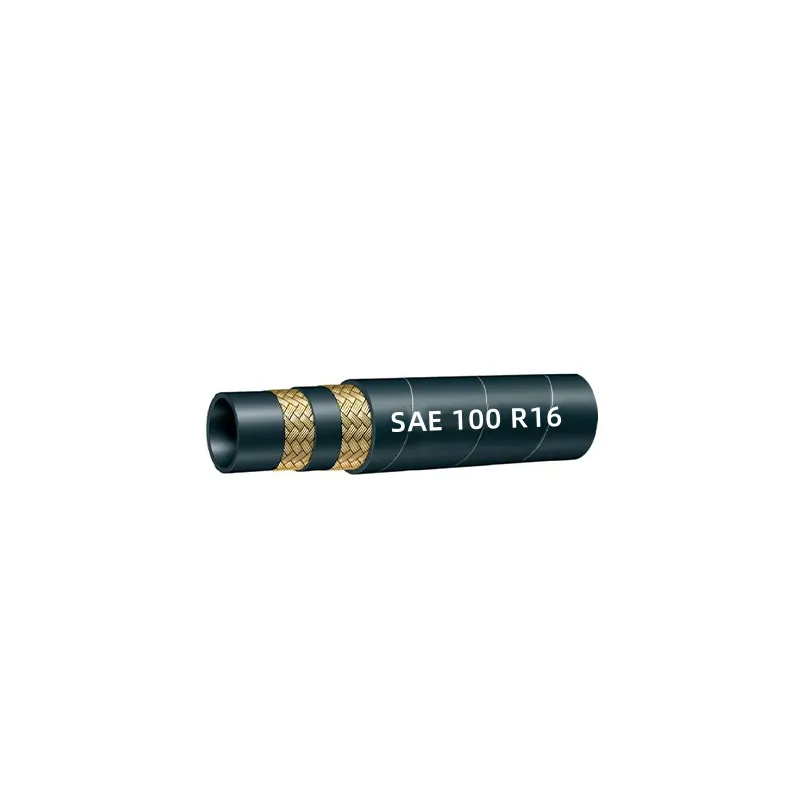

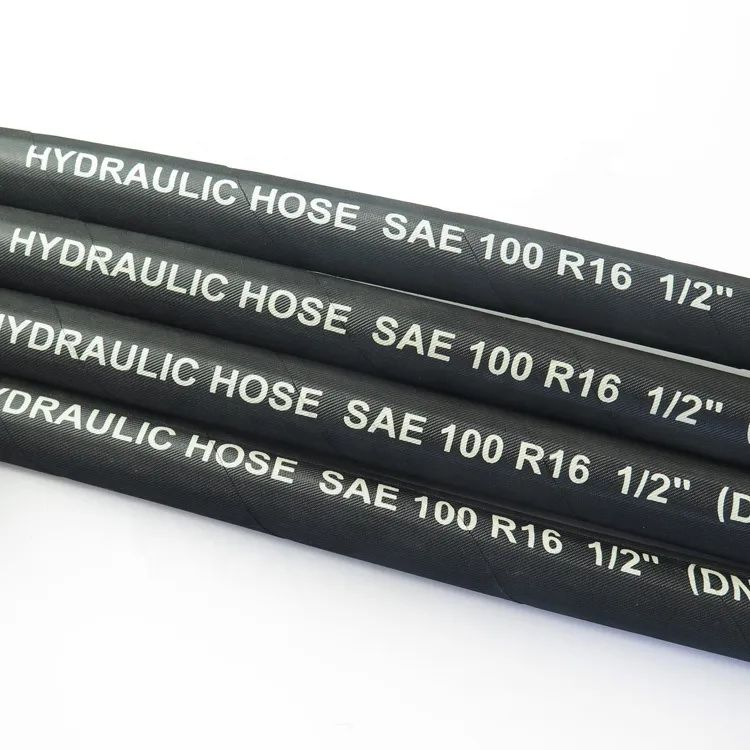

Compact High-pressure One-layer and Two Layers Steel Wire Reinforced Hydraulic Hose SAE 100 R16

Hydraulic hose SAE 100 R16 is steel wire braid hydraulic hose. It has small inner diameter with small bending radius, so it suitable in a narrow space environment. It consists of three layers. Inner tube, reinforcement and outer layer. Its used to deliver hydraulic fluid, petroleum based hydraulic fluid, hydraulic oil, mineral oil, gasoline, fuel oil, lubricating oil, emulsion, glycol solution, air brake, gas and water.

Hydraulic hose is made of rubber and plastic material, also known as rubber and plastic hose which has obvious efficiency and energy saving effect.

High pressure hose steel wire reinforced hydraulic rubber hose mainly used in mine hydraulic support, oil field development, suitable for engineering construction, lifting and transportation, etc.

How Does Compact SAE 100 R16 Hose Optimize Space in Machinery?

In modern hydraulic systems, space efficiency is often as critical as performance. The Compact High-pressure One-layer and Two Layers Steel Wire Reinforced Hydraulic Hose SAE 100 R16 from Guangrao Juyuan Rubber And Plastic Co., Ltd. is engineered to meet the demands of tightly configured machinery without compromising reliability. Established in 2014, our company has specialized in producing high-quality hoses that combine advanced design, robust materials, and precision engineering, offering professional solutions for industries requiring high-pressure, compact hydraulic systems.

The compact design of this sae 100r16 hose allows engineers to fit high-pressure hoses into constrained spaces, making it ideal for modern equipment such as excavators, compact loaders, or specialized industrial machinery. By using either a single-layer or dual-layer steel wire reinforcement depending on system pressure requirements, this hose maintains structural integrity while reducing bulk. Its inner tube is made of premium synthetic rubber, resistant to hydraulic oils, fuels, and abrasive fluids, ensuring safe and consistent performance. The outer cover provides excellent resistance to abrasion, environmental exposure, and mechanical wear, enhancing durability in demanding conditions.

By implementing compact hydraulic hoses, operators benefit from improved routing flexibility, reduced bending stress, and simplified installation processes. The sae100r16 variant supports a wide range of pressures while maintaining flexibility, making it suitable for dynamic machinery movements and multi-directional fluid routing. Guangrao Juyuan’s factory-direct production model ensures consistent quality and competitive pricing, allowing customers to access professional-grade hydraulic hoses without additional cost burdens.

Additionally, the sae 100r16 hose undergoes rigorous quality testing, including burst pressure evaluation, flexibility assessment, and environmental exposure tests. This guarantees that every hose performs reliably, even in high-pressure and space-constrained hydraulic systems. By choosing this hose, engineers and operators can optimize machinery layouts, minimize spatial constraints, and maintain high operational efficiency, demonstrating the unique advantage of compact high-pressure hose design in modern hydraulic engineering.

Why Is SAE 100R16 Hydraulic Hose Easier to Maintain?

Maintenance is a crucial aspect of ensuring continuous performance and safety in hydraulic systems. The sae 100r16 hydraulic hose from Guangrao Juyuan Rubber And Plastic Co., Ltd. provides a practical solution by combining high-pressure capability with ease of installation and maintenance. Since 2014, our company has been dedicated to producing hoses that are not only durable and high-performing but also designed for operational convenience in industrial and mobile hydraulic systems.

The one-layer and two-layer steel wire reinforcement structure allows the SAE 100R16 hose to maintain strength while remaining lightweight and flexible. This reduces the labor required during installation and allows operators to perform routine inspections and maintenance more efficiently. The inner tube is engineered for chemical resistance against hydraulic oils and other fluids, while the outer layer protects against mechanical wear and environmental factors, ensuring a long service life. By facilitating easier access and flexible routing, maintenance tasks such as replacement, inspection, or reconfiguration of hydraulic lines become faster and safer.

Using sae100r16, engineers can implement modular hydraulic designs where hoses are easier to replace or reroute without disrupting the entire system. This reduces downtime, increases operational efficiency, and lowers maintenance costs. Each hose undergoes rigorous testing for burst pressure, flexibility, and durability, confirming that even in high-pressure systems, the hoses maintain reliability. Guangrao Juyuan’s direct-to-customer approach ensures that the hoses reach clients with guaranteed quality, making maintenance planning more predictable and cost-effective.

In practice, operators notice a significant difference in handling compact SAE 100 R16 hydraulic hoses compared to traditional high-pressure hoses. The reduced diameter and flexible design minimize bending stress and simplify storage. This not only extends hose lifespan but also supports safer and more efficient hydraulic operations. By choosing this hose, businesses benefit from a product that balances high-pressure performance with practical operational advantages.

How Does SAE 100 R16 Hose Improve Hydraulic System Energy Efficiency?

Energy efficiency is becoming an increasingly important factor in hydraulic system design. The Compact High-pressure One-layer and Two Layers Steel Wire Reinforced Hydraulic Hose SAE 100 R16 helps reduce energy losses by minimizing pressure drops and fluid turbulence. Guangrao Juyuan Rubber And Plastic Co., Ltd., established in 2014, specializes in producing professional-grade hydraulic hoses that balance performance, durability, and system efficiency for industrial and mobile applications.

The optimized inner tube and steel wire reinforcement of the sae 100r16 hose reduce friction and maintain smooth fluid flow, which lowers energy consumption by hydraulic pumps. Its compact design allows more direct routing of hoses, reducing unnecessary bends and length that can lead to pressure loss. The high-quality synthetic rubber inner tube resists degradation from hydraulic oils, ensuring consistent energy transfer and operational reliability over long periods. The hose’s outer cover protects against abrasion, UV exposure, and mechanical damage, maintaining performance without requiring additional protective measures.

Using the sae100r16 hose in hydraulic networks contributes to overall system efficiency by supporting stable pressure delivery and reducing energy waste. Its design allows engineers to implement compact, streamlined systems, further minimizing energy loss and optimizing machinery performance. The hose is suitable for applications such as construction equipment, industrial presses, and mobile hydraulic machinery, where energy efficiency directly impacts operating costs and productivity.

Moreover, Guangrao Juyuan’s factory-direct production ensures consistent quality and reliability, allowing businesses to reduce maintenance interruptions and maximize system uptime. By selecting the sae 100r16 hose, operators not only improve hydraulic system efficiency but also contribute to more sustainable and cost-effective operations, demonstrating how compact, high-performance hoses can enhance energy management in modern hydraulic engineering.

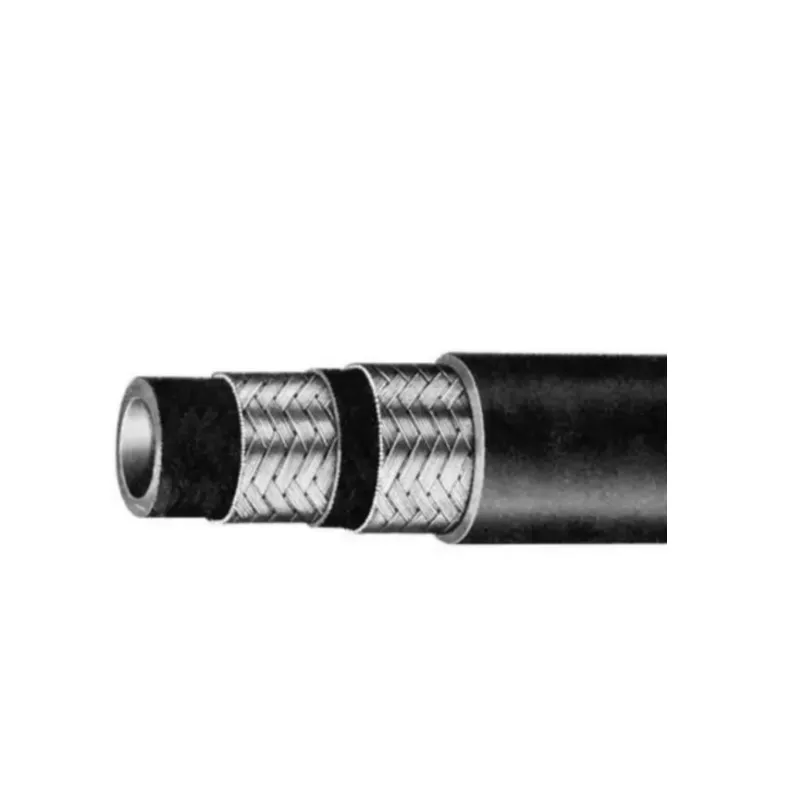

The hydraulic hose has three layers of different material structure. The inner tube is made from oil resistant synthetic rubber, therefore it can’t be corroded by the petroleum base fluid and liquid. The reinforcement part is consist with  braided steel wire or high tensile textile, making the hose can withstand internal and external high pressure. The cover is made from high quality rubber and to play the protective function, so the rubber hose could resistant to abrasion, corrosion, air oxidation, extreme weather, ozone, aging, sunlight and cutting, also with longer service life.

SAE 100 R16

Mine hydraulic support：excavator、pneumatic equipment

Oil field mining：drilling equipment、drilling rig、oil pump

Engineering construction：lift machine、scraper、loader、drill、pile driver

Road construction machinery：rock crusher、stone crusher

Ships：cruise ship、fishing boat、yachts、ferries、port crane、quay crane

Offshore equipment：offshore drilling platform

Vehicle：cars、buses、vans、trucks、trains、subway

Pneumatic systems: air compressor、air brake

Oil resistance and high pressure resistance

High temperature resistance and heat resistance

Aging resistance with long service life

Good flexibility without distortion
